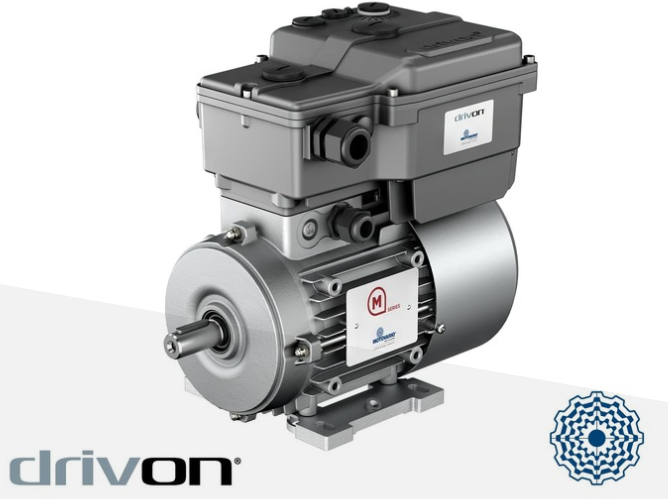

MOTOVARIO” Drivon inverter motor DV

230 V Drivon:

• – Single-phase and three-phase power supply: (200÷260) V / (47÷63) Hz
• – Rated power: 0.25; 0.37; 0.55; 0.75; 1.1; 1.5 kW
• – Speed range: 0÷2500 rpm

400V Drivon:

• – Three-phase power supply: (360÷480) V / (47÷63) Hz
• – Rated power: 0.25; 0.37; 0.55; 0.75; 1.1; 1.5; 2.2; 3.0; 4.0; 5.5 kW
• – Speed range: 0÷3000 rpm

General functions:

• – FOC open-loop vectorial control of asynchronous motors
• – Protection class: IP55 (IP56, IP65, IP66 optional)
• – Built-in STO (Safe Torque Off) feature for safe stop according to ISO 13849-1 and IEC 61508 standards
• – On-board potentiometer with Start function featuring programmable threshold
• – Built-in USB interface
• – Integrated CANopen DSP402 and Modbus RTU field Bus
• – Continuous duty at low speed with reduced use of servo-ventilation
• – Torque overload of 200% at transient rpm
• – Motor I2t thermal cut-out
• – PTC and bimetallic thermal probe input
• – Multi-colour status LED for quick diagnosis
• – Programmable multifunction opto-isolated digital inputs
• – Maximum drive torque can be set by the user
• – Possible speed setting by means of the encoder on motor
• – Enable auto search for idling motor speed at starting
• – Combinatorial multiple frequency reference
• – Dynamic braking with emergency fast stop
• – External process PI regulator with analogue feedback
• – S-ramps with programmable parameters
• – Mechanical resonance frequency controlled management
• – Control and programming smart keypad (optional)
• – Potentiometer + movement direction control module (optional)
• – Profibus DP communication module (optional)
• – Electro-mechanic braking module (optional)
• – I/O expansion module (optional)
• – Dynamic braking module with integrated resistor (optional)

SMART KEYPAD (optional):

• – Integrated in the inverter or remote-type
• – Mechanical fixing with possibility to set its orientation
• – Remote control by means of a cable and RJ connection
• – Parameter setting and Control functions
• – 7-segment 4-digit display
• – UP/DOWN/ENTER/MODE/FWD_REV buttons
• – Parameter Copy function
• – JOG function

ACCESSORIES:

• – Available protection class: IP56 – IP65 – IP66
• – Potentiometer + movement direction control
• – Electromagnetic brake control module
• – Dynamic braking control module and chopper
• – Motor accessories and options
• – Emergency stop button
• – Communication module:
