Characteristics

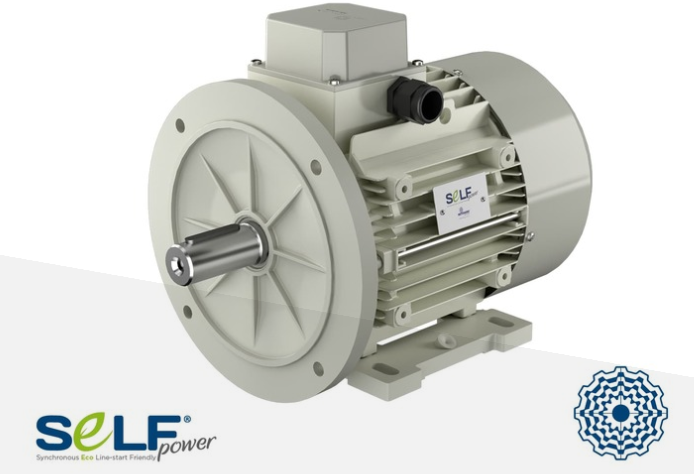

- Self-starting synchronous motor without permanent magnets
- Starting from the mains or with V/f scalar inverter
- Constant speed with variable load (no speed feedback)
- Suitable for multiple motors applications (no speed feedback)
- Efficiency IE4, IE3
- Simple and reduced commissioning time
- Lower operating temperatures than an equivalent asynchronous motor
- Longer service life
- Smaller overall dimensions and lower environmental impact than an asynchronous motor
- Motors designed in accordance with the requirements of IEC 60034 family and relevant harmonized standards
- External surface ventilation
- Insulation class F or H
- Degree of protection IP55, IP56, IP65, IP66
- Unified size and shaft heights from 80 to 90L
- Power ratings and dimensions in accordance with IEC 60072-1
- Available with mounting feet B3 or B5 with flange or B14
- Polarity: 4
- FM brake in DC and MS brake in AC
- Motor standard version unpainted
- Over-temperature compatible with Class B
- Ambient temperature + 40°C
- Altitude < 1.000 m above sea level
